High Temperature Fire Sleeve tube
High Temperature Fire Sleeve tube

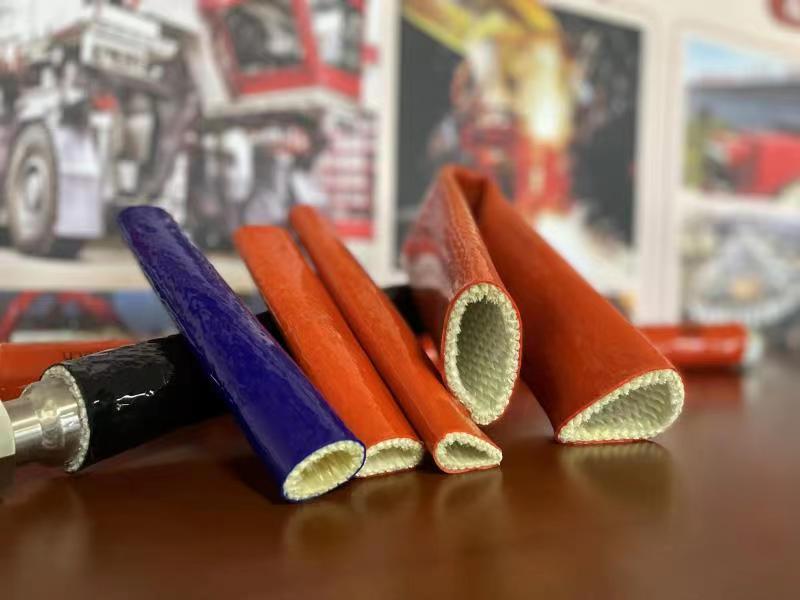

Fire Sleeve is ideal for protecting against high under bonnet temperatures which makes it perfect for use on hoses,wiring,oil and fuel lines.The Sleeve is made from woven insulated glass fiber braided sleeve that is heavily coated with 100% iron oxide silicone rubber.
The Sleeve can withstand up to1650℃ ambient heat and 560℃ of direct continuous heat which makes it perfect for insulating wires,oil and fuel lines from under bonnet heat.
The Sleeve can withstand up to1650℃ ambient heat and 560℃ of direct continuous heat which makes it perfect for insulating wires,oil and fuel lines from under bonnet heat.
Key Features
Withstands harsh abrasions,hot oil spills & more
Water & oil resistant
Protect against hydraulic fluids, lubricating oils & most chemicals
Durable and flexible for tight bends
Size list
| Inside dia.(mm) | Inside dia.(inch) | Wall thickness(mm) | Tolerance(mm) | Roll length(m) |
| ∅10 | 3/8 | 2 | ±0.20 | 25 |
| ∅11 | 7/16 | 2 | ±0.20 | 25 |
| ∅13 | 1/2 | 2 | ±0.20 | 25 |
| ∅16 | 5/8 | 2 | ±0.20 | 25 |
| ∅19 | 3/4 | 2 | ±0.20 | 25 |
| ∅22 | 7/8 | 2 | ±0.20 | 25 |
| ∅25 | 1 | 2 | ±0.30 | 25 |
| ∅29 | 11/8 | 2 | ±0.30 | 25 |
| ∅32 | 11/4 | 2 | ±0.30 | 25 |
| ∅35 | 13/8 | 3 | ±0.30 | 25 |
| ∅38 | 11/2 | 3 | ±0.30 | 25 |
| ∅40 | 13/5 | 3 | ±0.30 | 25 |
| ∅41 | 15/8 | 3 | ±0.30 | 25 |
| ∅45 | 13/4 | 3 | ±0.30 | 25 |
| ∅48 | 17/8 | 3 | ±0.30 | 25 |
| ∅51 | 2 | 3 | ±0.35 | 25 |
| ∅55 | 21/5 | 3.5 | ±0.35 | 50 |
| ∅57 | 21/4 | 3.5 | ±0.35 | 50 |
| ∅60 | 23/8 | 3.5 | ±0.35 | 20 |
| ∅64 | 21/2 | 3.5 | ±0.35 | 20 |
| ∅65 | 23/5 | 3.5 | ±0.35 | 20 |
| ∅70 | 23/4 | 3.5 | ±0.40 | 20 |
| ∅76 | 3 | 4 | ±0.40 | 20 |
| ∅80 | 31/5 | 4 | ±0.40 | 20 |
| ∅83 | 31/4 | 4 | ±0.40 | 20 |
| ∅85 | 33/8 | 4 | ±0.40 | 20 |
| ∅89 | 31/2 | 4 | ±0.50 | 20 |
| ∅90 | 39/16 | 4 | ±0.50 | 20 |
| ∅95 | 33/4 | 4 | ±0.50 | 20 |
| ∅102 | 4 | 5 | ±0.50 | 10 |
| ∅110 | 41/3 | 5 | ±0.50 | 10 |
| ∅114 | 41/2 | 5 | ±0.50 | 10 |
| ∅120 | 44/5 | 5 | ±0.50 | 10 |
| ∅127 | 5 | 5 | ±0.50 | 10 |
Production and Packing
The product will be tested in the factory line before packed
We will use pallet to ship the quantity products,We will use PE film for packing or pack it according to customers special requst.
Packing Details:Poly bag,Standard export carton box.
